AiM MyChron5 technical data
| RPM | Pulse inductive from the ignition cable Measuring range 0 up to 60.000 rpm |
| Time measurement | Triggering via infrared, magnetic or GPS Lap times without limits, up to 5 Split times Measuring accuracy 1/100 sec. |
| Analogue channels | Only over MyChron Expansion |
| Speed | Detection over integrated GPS |
| Gear indication | Calculated from rpm and GPS-speed |
| Connectors | 1x Binder 711-7 | 1x Binder 711-4 | 1x Binder 711-5 |
| Shift-lights | 5 configurable RGB LEDs for each gear |
| Additional functions | Displays the difference to the fastest lap at the split times Predictive lap times WiFi Connection Light sensor for display illumination Configurable display indication 2 configurable RGB alarm lights multicolored background illumination Gyroscope |
| Data storage | Non-volatile 4 GB-storage |
| Data transfer | WiFi 802.11 or DataKey |
| Power supply | Rechargeable internal lithium battery (10 hours) optional connection to external 12V battery |
| Updates | Software- and Firmware Updates for free over the internet |

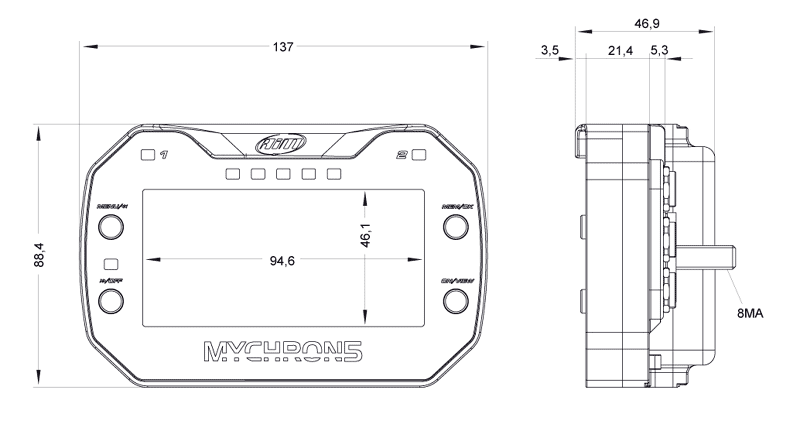

| Measurements | Housing: 137 x 88 x 47 Display: 94,6 x 46,1 |
| Weight | 340 grams |
| Protection class | IP65 |
